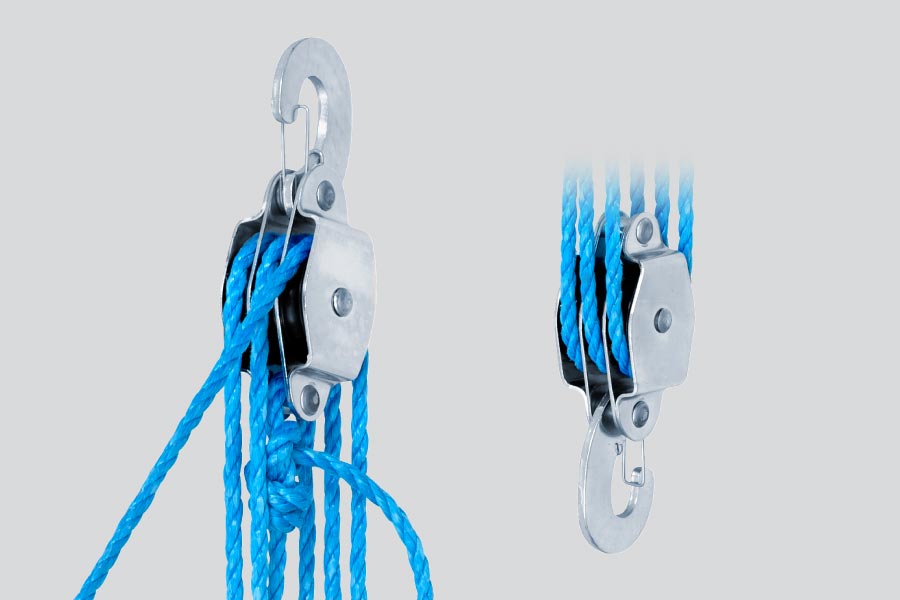

singleview_Universal-Flaschenzug-ohne-Seilbremse-EN

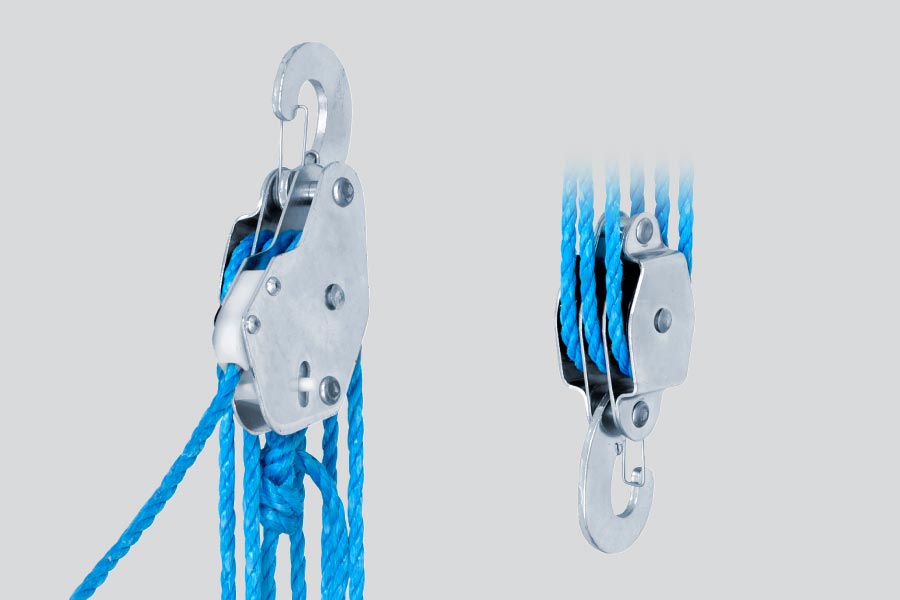

singleview_Universal-Flaschenzug-mit-Seilbremse-EN

UNIVERSAL PULLEYS WITH ROPE

PRODUCT INFORMATION

Easy handling: fast lifting, pulling and tensioning
High stability: sheet steel housing with safety hooks
High-quality: rollers out of polyamide
Polypropylene rope with 6 mm diameter
High safety: breaking load check through independent testing institution in Remscheid, Germany
Individual lifting height: upon request, a 16-fold woven multi-filament yarn without swirl for lifting heights up to 7 meters can be supplied

!

WARNING!
DO NOT EXCEED LOAD CAPACITY!

Please select:

Clear

SKU: N/A

AREA OF APPLICATION

Automobiles: changing motors, pulling out stuck vehicles
Leisure: pulling a motorboat onto land or jacking it up, mounting a trailer
Yard work: Digging out trees, pulling out roots, erecting fences
Farming and forestry
Workshops, businesses, assembly

Product Specifications

ARTICLE-NO.	K10807	K10852	K10814	K10869
without rope brake	with rope brake
Description	Schöco 22	Schöco 30	Schöco 22B	Schöco 30B
Lifting height (m)	2,5	2,5	2,5	2,5
Transmission ratio	6:1	8:1	6:1	8:1
Breaking Load Limit (kg)	800	1000	800	1000
Working Load Limit (kg)	220	300	220	300
Rope length (m)	18	22	18	22
Total height (mm)	300	300	300	300
Weight (kg)	0,75	0,94	0,80	1,00
