PULLEYS WITH FORGED SAFETY HOOKS, WITHOUT ROPE

Product Information

  • Easy handling: fast lifting, pulling and tensioning
  • Corrosion protection: galvanized, compact sheet steel housing with three adjacent rollers

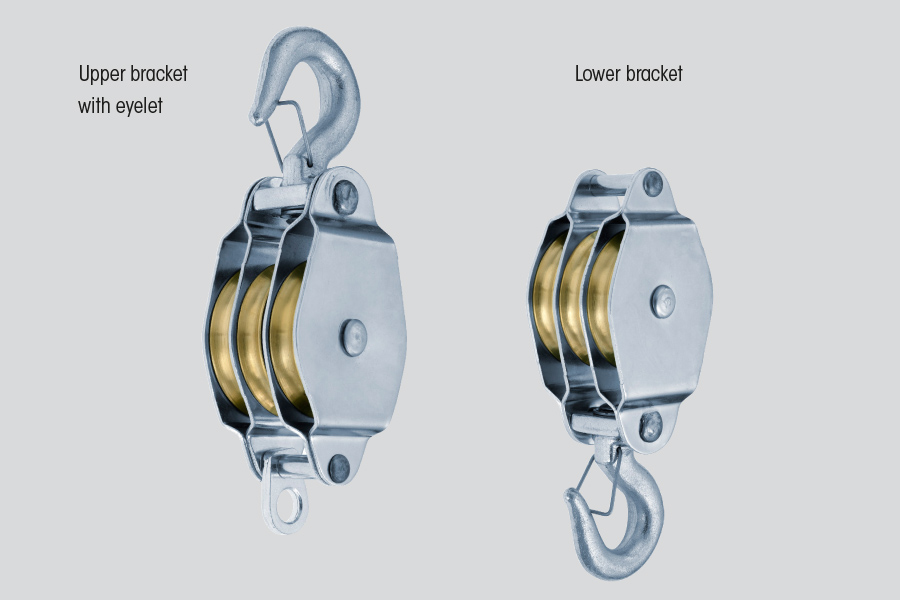

  • Two parts: every pulley consists of two brackets, one of which has a cable loop
  • Flexibility: smooth running plastic rollers, long-lasting brass rollers or universal iron rollers

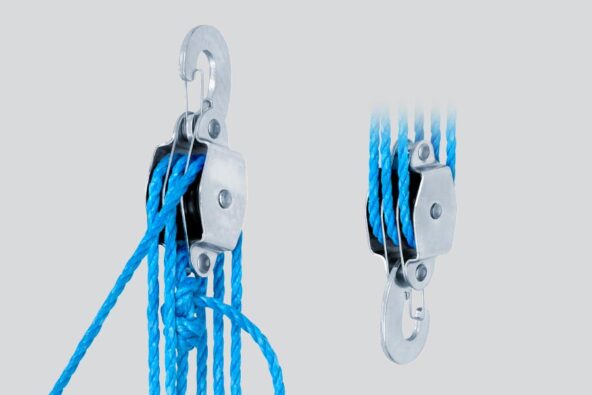

  • Choice of ropes: ropes can be ordered as follows: enclosed, knotted, spliced (polypropylene or hemp rope)

!

WARNING!
DO NOT EXCEED LOAD CAPACITY!

SKU: N/A

Area of Application

  • Automobiles, leisure activities and garden work
  • Agriculture and forestry
  • Workshops, businesses, assembly

Product Specifications

Ø Roles mm 40 50 60 70 80 100
Iron roles
ARTICLE-NO. K10159 K10258 K10357 K10456 K10555 K10654
Weight (kg) 0,85 1,50 1,60 3,70 4,00 8,60
Ø Roles mm 40 50 60 70 80 100
Brass roles
ARTICLE-NO. K10166 K10265 K10364 K10463 K10562 K10661
Weight (kg) 0,90 1,55 1,65 3,80 4,10 8,60
Ø Roles mm 40 50 60 70 80 100
Synthetic roles
ARTICLE-NO. K10173 K10371
Weight (kg) 0,74 1,20
Ø Roles mm 40 50 60 70 80 100
Hook opening (mm) 15 15 15 21 21 25
Thickness of roles (mm) 9 12 12 16 16 20
Rope (Ø mm) 6 8 10 12 12 16
Breaking Load Limit (kg) 600 800 1000 1200 1400 2000
Working Load Limit (kg) 150 200 250 300 350 500
Total height (mm) 360 390 390 590 590 790
