AREA OF APPLICATION

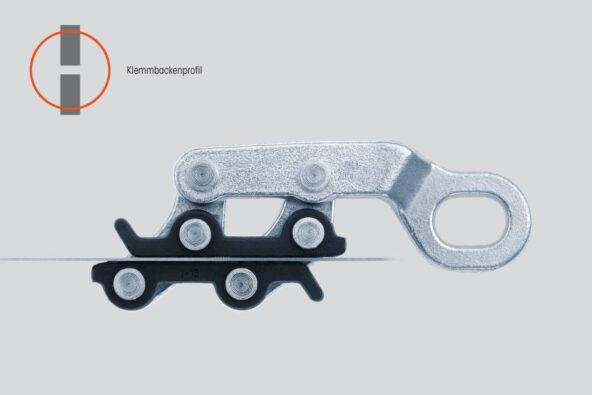

- Our Wire Grips are the ideal tool to safely stretch copper and steel cables. They have a wide range of applications in manufacturing, agriculture and bridge construction. The profile of the clamping jaws is specifically designed for copper and steel cables so that the stretched material does not become damaged.
Product Specifications
| ARTICLE-NO. | K12504 | K12511 | K12528 | K12535 | K12542 | K12559 |
| Type | Size 0 | Size 1 | Size 2 | Size 3 | Size 4 | Size 5 |
| Cable (Ø mm) | 1 – 5 | 3 – 9 | 4 – 12 | 6 – 18 | 10 – 28 | 20 – 40 |
| Cable cross-section (mm²) | 1 – 16 | 6 – 35 | 16 – 70 | 50 – 150 | 90 – 400 | 240 – 800 |
| Eye size (mm round/oval) | 20 round | 22 round | 27 round | 25×38 oval | 30×40 oval | 30×40 oval |
| Breaking Load Limit (kg) | 1250 | 2500 | 4500 | 7000 | 8000 | 9000 |
| Working Load Limit (kg) | 500 | 1000 | 1700 | 3000 | 3500 | 4000 |
| Remote release (Ø mm) | – | 5,0 | 5,0 | 5,5 | 5,5 | 5,5 |
| Weight (kg) | 0,25 | 0,85 | 1,27 | 1,83 | 4,00 | 6,00 |
