Extraction rollers as an auxiliary tool for installation of cables in overhead line construction

EXTRACTION ROLLERS AS AN AUXILIARY TOOL FOR INSTALLATION OF CABLES IN OVERHEAD LINE CONSTRUCTION

PRODUCT INFORMATION

  • Effortless: roller out of aluminum with brass bush
  • Corrosion protection: housing and bearing bolt made out of galvanized steel
  • Easy handling: wing nut for opening from the side

FURTHER INFORMATION

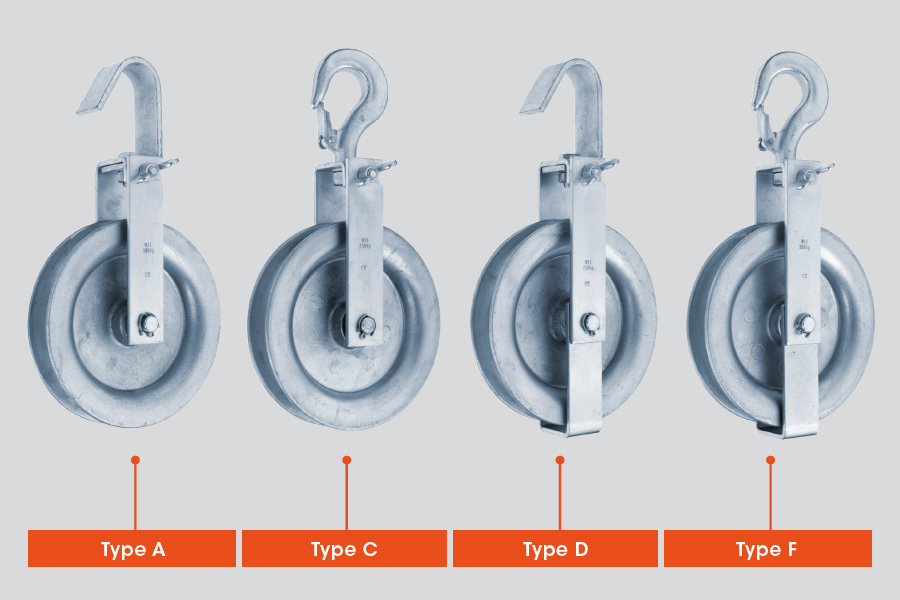

  • Types A + D: fixed suspension bracket
  • Types C + F: rotatable safety hooks according to DIN 15401 (German Institute for Standardization)
  • Types D + F: higher load capacity and better roller protection due to encompassing housing with double-sided bearing.

!

WARNING:
DO NOT EXCEED LOAD CAPACITY!

SKU: N/A

AREA OF APPLICATION

Our extraction rollers for power line construction are vital tools for installing cables and overhead transmission lines. They serve for the preliminary mounting during the tensioning of power cables. With the wing nuts one is able to open the housing from the side, in order to thread in cables and overhead transmission lines and to remove the extraction rollers after tensioning.

Product specification

ARTICLE-NO.K11606 (TYPE A)K11613 (TYPE A)K11668 (TYPE C)K11675 (TYPE C)K11804 (TYPE D)K11811 (TYPE D)K116866 (TYPE F)K11873 (TYPE F)
Roller (Ø mm)115200115200115200115200
Cable/Wire (Ø mm)1629162916291629
Cable/Wire cross section (mm²)150500150500150500150500
Rooler width (mm)2642264226422642
Breaking Load Limit (kg)600800800100070010009001200
Working Load Limit (kg)150200200250200250250300
Weight (kg)1,032,481,112,521,202,821,102,93
